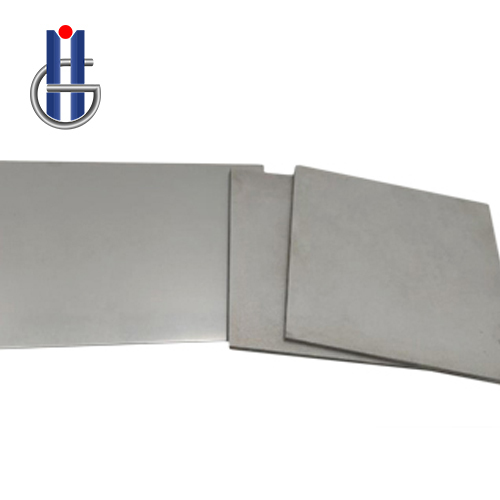

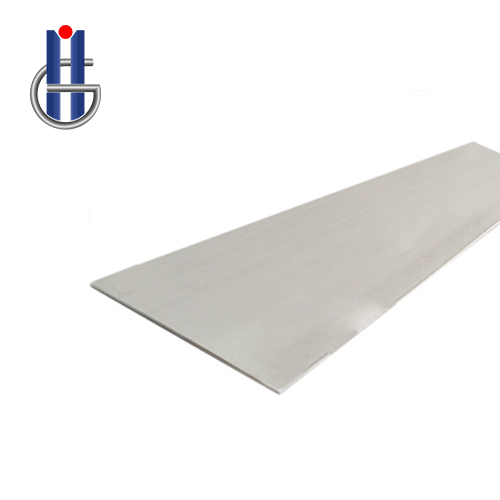

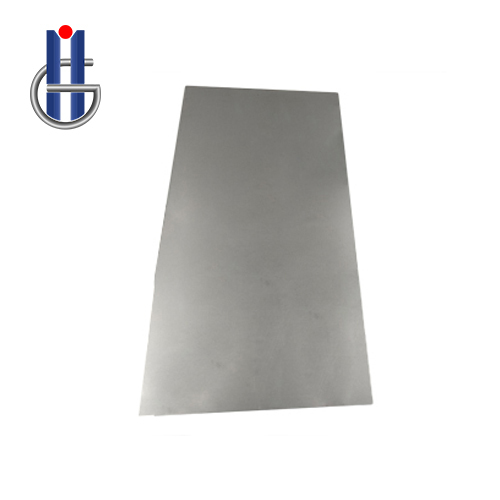

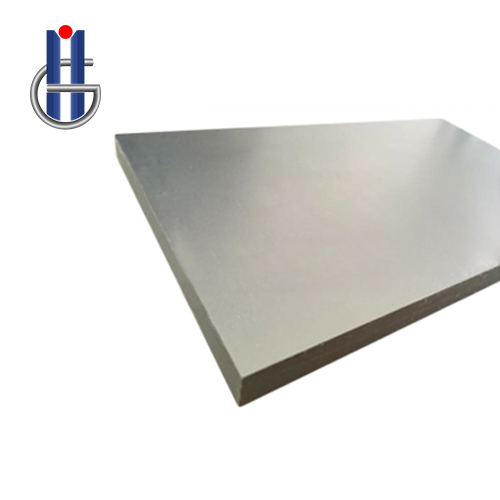

Molybdenum alloy plate is a non-ferrous alloy composed of molybdenum matrix and other elements. The main alloying elements of molybdenum alloy plate are titanium, zirconium, hafnium, tungsten and rare earth elements. Titanium, zirconium and hafnium can not only strengthen molybdenum alloy plate by solution, but also form stable and dispersive carbide phase, and improve the strength and recrystallization temperature of molybdenum alloy sheet. |
Item |
Molybdenum Alloy Plate |
Standard |
ASTM, AISI, JIS, ISO, EN, BS, GB, etc. |
Material |
SB410,SB450,SB480,SB450M,SB480M |
Size |
Width: 150mm~2200mm Length: 6m, 12m, etc. or according to your request Thickness: 1mm~200mm Various sizes can be customized |
Melting point |
2625°C (4760 °F) |
Application |
Is widely used in making all kinds of electrodes, heating element, and resistance to high temperature structure parts is deep processing of high quality raw materials. |
Tensile strength |
350~800MPa |
Export to |
United States, Australia, Brazil, Canada, Germany, Peru, Japan, Italy, United Kingdom, Arabia, etc. |
Package |
Wooden box(foam board around the inner wooden box). |
Price term |
EXW, FOB, CIF, CFR, CNF, etc. |
Payment |
T/T, Western Union, L/C, etc. |
Certificates |
TUV&ISO&GL&BV,etc. |
Size tolerance |
+/- 1%~3% |
Advantages compared with pure molybdenum: Better creep resistance High recrystallization temperature Better high temperature strength Good welding performance |
