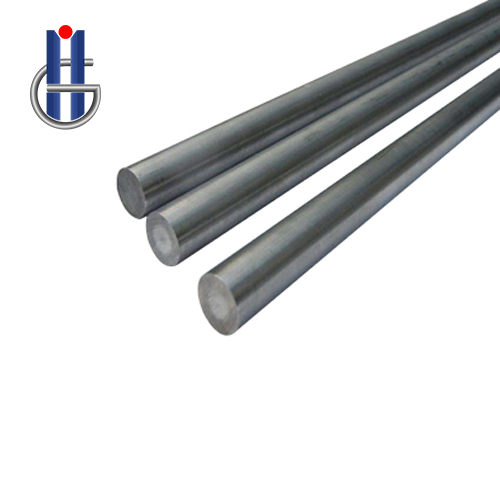

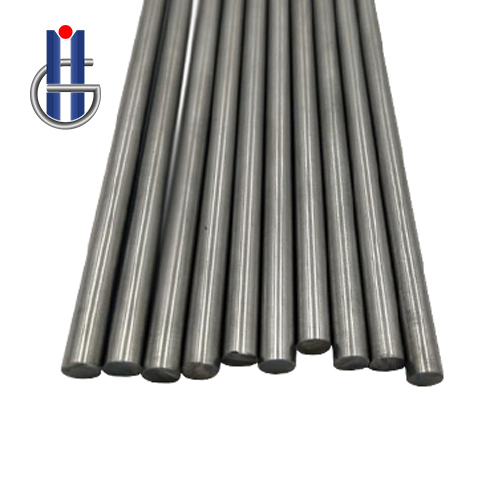

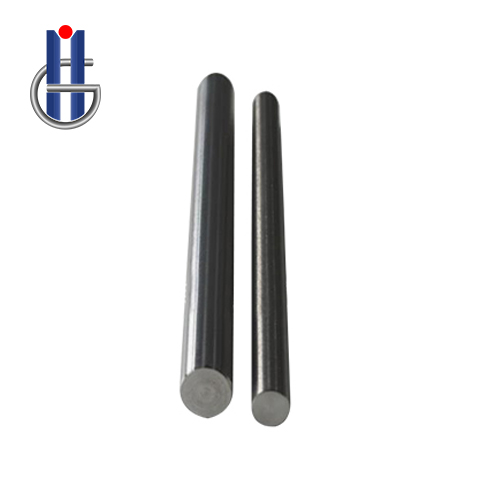

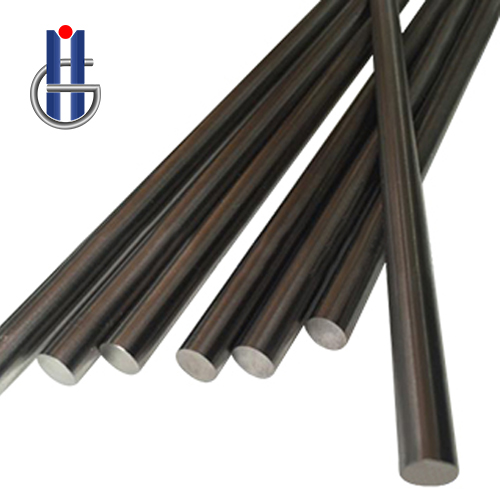

Molybdenum rods with molybdenum content above 99.9% have high melting point, good thermal conductivity and low thermal expansion properties. At high temperature, molybdenum rods can resist oxidation and have high strength. Molybdenum rods can be used to manufacture high-temperature heating elements, high-temperature structural parts, electrodes, as well as electric vacuum devices and electric light source parts. |
Item |
Molybdenum Rod |
Standard |
ASTM, AISI, JIS, ISO, EN, BS, GB, etc. |
Material |
Molybdenum powder, etc. |
Size |
Diameter: 0.8mm~100mm Various sizes can be customized |
Purity |
99.95% min |
Application |
Used for manufacturing electric vacuum devices and electric light source parts. Suitable for processing ion injection parts. Used as high temperature heating element and high temperature structural parts. Used as furnace electrode in glass and refractory fiber industry, working in 1300℃ glass melt, long service life. Rare earths are used as electrodes in the industry. |
Chemical composition |
99.95% pure molybdenum |
Export to |
United States, Australia, Brazil, Canada, Germany, Peru, Japan, Italy, United Kingdom, Arabia, etc. |
Package |
The molybdenum bars shall be packed separately with PE and pearl cotton material and placed in appropriate wooden cases. The extra gaps must be filled to prevent the products from being damaged by vibration during transportation. |
Price term |
EXW, FOB, CIF, CFR, CNF, etc. |
Payment |
T/T, Western Union, L/C, etc. |
Certificates |
TUV&ISO&GL&BV,etc. |
Boiling point |
4615℃ |
Classification: Classification by material: (1) Pure molybdenum bar: molybdenum content is greater than 99.95%. (2) High temperature molybdenum rod (lanthanum molybdenum alloy rod) : lanthanum 0.4~1.2%, molybdenum content in addition to impurities. (3)TZM molybdenum bar: 0.4~0.6Ti, 0.07~0.12Zr, 0.01~0.05C. Classification by surface state: (1) Sintered molybdenum rod: the surface is silver gray metallic luster. (2) Forging molybdenum bar: there is a layer of oxide on the surface, the surface is black. (3) Polished molybdenum rod: the surface has metallic luster, smooth and rough. (4) Polished molybdenum rod: silver gray metallic luster, smooth surface, small size error. |
