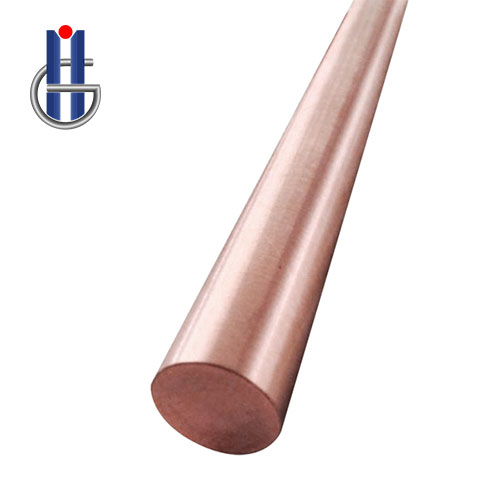

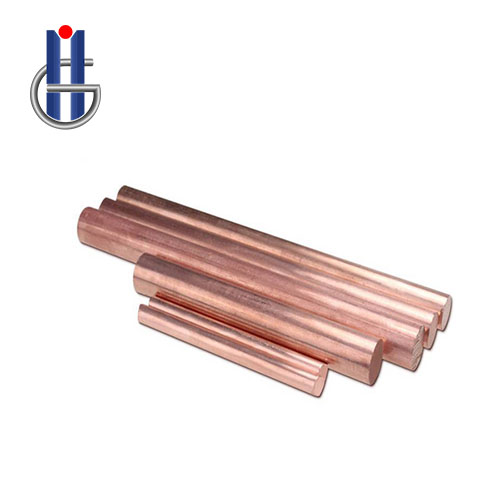

Tungsten copper bar is a rod composed of tungsten element copper element. Common grades of tungsten copper bars are WD10055, WD10070, WD10075 and so on. Tungsten copper bar is a kind of metal sweating material. At very high temperature, such as above 3000 ℃, the copper in the alloy is liquefied and evaporated, absorbs a large amount of heat, and then reduces the surface temperature of the material. |
Item |
Tungsten Copper Bar |
Standard |
ASTM, AISI, JIS, ISO, EN, BS, GB, etc. |
Chemical composition |
Copper, Tungsten |
Size |
Diameter: 3mm~800mm Various sizes can be customized |
Surface |
Accurate Grinding, Polished |
Export to |
United States, Australia, Brazil, Canada, Germany, Peru, Japan, Italy, United Kingdom, Arabia, etc. |
Transport package |
1. Inner packed by waterproof or moisture bags, with lining foam; 2. Outer packed by plywoo case or suitable packing materials. |
Price term |
EXW, FOB, CIF, CFR, CNF, etc. |
Payment |
T/T, Western Union, L/C, etc. |
Certificates |
TUV&ISO&GL&BV,etc. |
Hardness |
1/16 hard, 1/8 hard, 3/8 hard, 1/4 hard |
Bending strength (Mpa) |
700 |
Softening temperature (°C) |
900 |
Application |
It is used to make resistance welding electrodes, spark electrodes, high voltage discharge tube electrodes, and electronic packaging materials. |
Tungsten copper bar technology: High-density tungsten alloys are produced by injection molding. Its manufacturing method is to mix nickel powder, copper tungsten powder or iron powder with a uniform particle size of 1-5 microns, tungsten powder with a particle size of 0.5-2 microns and tungsten powder of 5-15 microns, and then mix in 25%-30 % organic binder (such as paraffin or polymethacrylate) injection molding, steam cleaning and irradiation to remove the binder, and obtain high-density tungsten alloy. |
FAQ: Q1: How do you guarantee the quality of your products? A: We have advanced production and inspection equipment and first-class technical production personnel, in addition, we also have strict inspection means to control our production quality. Q2: Can you make the product with my design? A: Yes, we can,we supply customized service.You can send us all the details of what you need,then we will provide detailed quotation. Q3: What's your advantage? A: Honest business with competitive price and professional service on export process. |
