Standard

ASTM, AISI, JIS, ISO, EN, BS, GB, etc.

Elongation%

16

Size

Thickness: 0.1mm~8mm

Width: 30mm~1000mm

Length: 10mm~12000mm

Various sizes can be customized

Characteristics

Zirconium alloy has isomorphous transformation, the high temperature phase is β-Zr with body-centered cubic structure, and the low temperature phase is α-Zr with close-packed hexagonal structure. The transition temperature of pure zirconium is 862°C. The transformation temperature of alloy and industrial zirconium is affected by alloying elements and impurity elements: the addition of iron, nickel, chromium, and niobium narrows the α-Zr phase region and reduces the transformation temperature.

Export to

United States, Australia, Brazil, Canada, Germany, Peru, Japan, Italy, United Kingdom, Arabia, etc.

Packaging details

Bundled wooden box or be required; Or as the customer request. In addition, We will make the products with good surface protection.

Price term

EXW, FOB, CIF, CFR, CNF, etc.

Payment

Certificates

Tensile strength

550MPa

Yield strength

380MPa

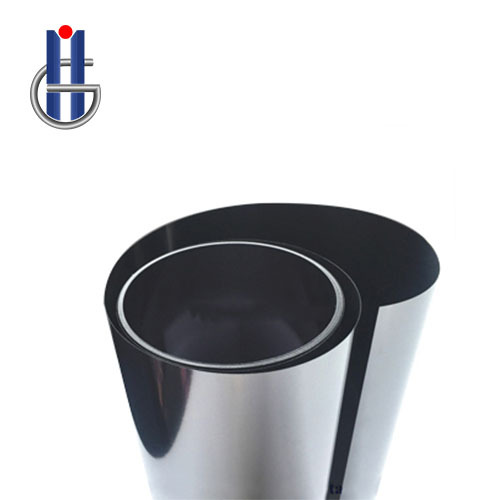

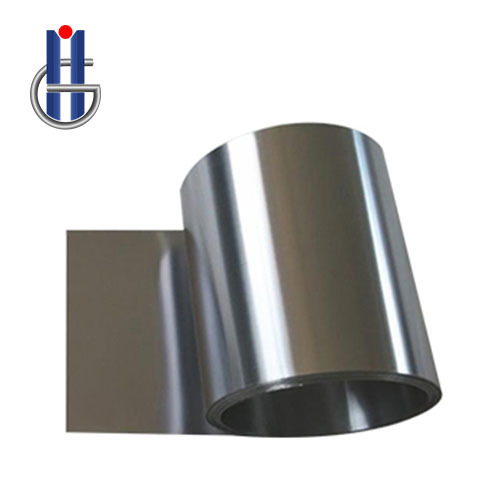

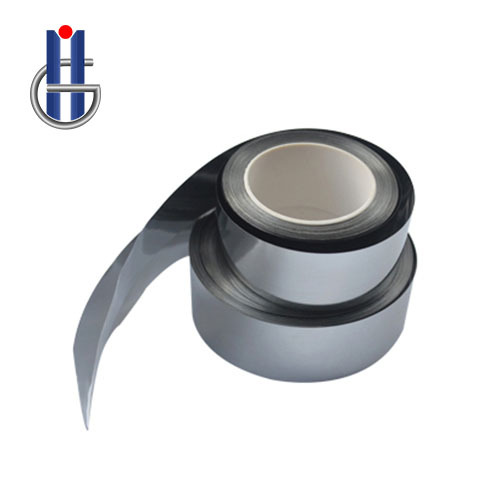

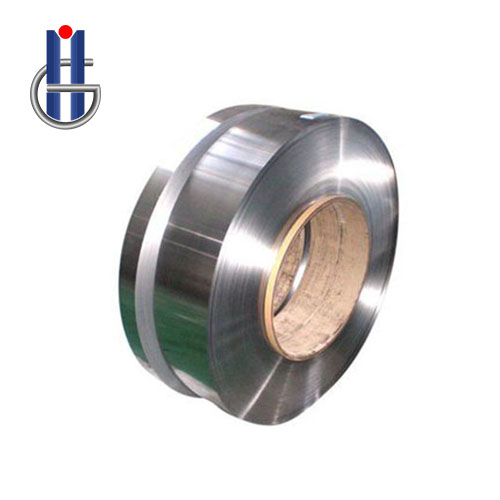

Shape

Strip

Application

For the production of corrosion-resistant parts and pharmaceutical devices.

Zr+Hf

Hf

Fe+Cr

Nb

C

O

N

H

≥95.5

≤4.5

≤0.2

2.0~3.0

≤0.05

≤0.18

≤0.025

≤0.005
